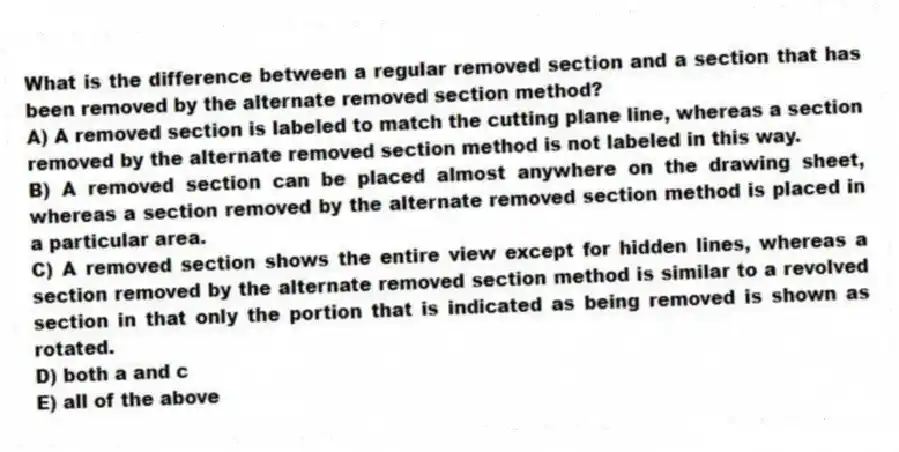

What is the difference between a regular removed section and a section that has been removed by the alternate removed section method?
A) A removed section is labeled to match the cutting plane line, whereas a section removed by the alternate removed section method is not labeled in this way.
B) A removed section can be placed almost anywhere on the drawing sheet, whereas a section removed by the alternate removed section method is placed in a particular area.
C) A removed section shows the entire view except for hidden lines, whereas a section removed by the alternate removed section method is similar to a revolved section in that only the portion that is indicated as being removed is shown as rotated.
D) both a and c
E) all of the above

Question

Quizplus · Accepted Answer

Both a removed section and a section removed by the alternate removed section method are labeled to match the cutting plane line. Both can be placed almost anywhere on the drawing sheet. A removed section shows the entire view except for hidden lines, whereas a section removed by the alternate removed section method is similar to a revolved section in that only the portion that is indicated as being removed is shown as rotated.
