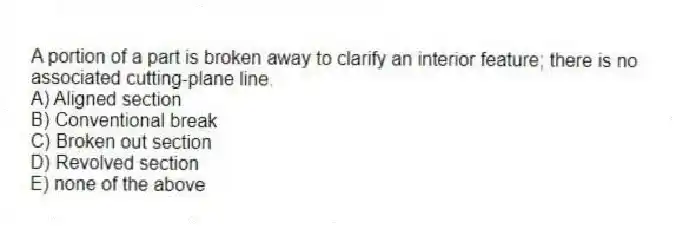

A portion of a part is broken away to clarify an interior feature; there is no associated cutting-plane line.
A) Aligned section
B) Conventional break
C) Broken out section
D) Revolved section
E) none of the above

Question

Quizplus · Accepted Answer

A broken-out section is used to show an interior feature of a part without the need for a cutting-plane line, by breaking away a portion of the part.
