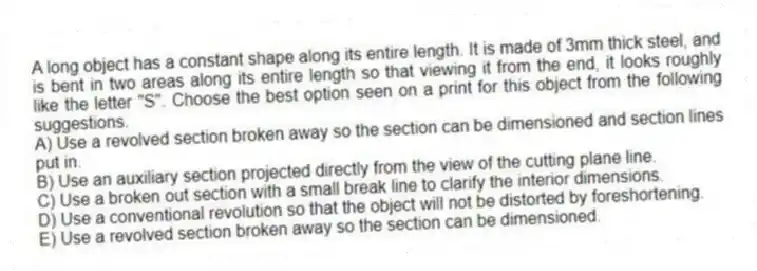

A long object has a constant shape along its entire length. It is made of 3mm thick steel, and is bent in two areas along its entire length so that viewing it from the end, it looks roughly like the letter "S". Choose the best option seen on a print for this object from the following suggestions.
A) Use a revolved section broken away so the section can be dimensioned and section lines put in.
B) Use an auxiliary section projected directly from the view of the cutting plane line.
C) Use a broken out section with a small break line to clarify the interior dimensions.
D) Use a conventional revolution so that the object will not be distorted by foreshortening.
E) Use a revolved section broken away so the section can be dimensioned.

Question

Quizplus · Accepted Answer

A revolved section broken away allows for the clear depiction of the object's cross-sectional shape and dimensions without distorting its appearance, making it ideal for an object with a constant shape along its length that resembles the letter "S" when viewed from the end.
