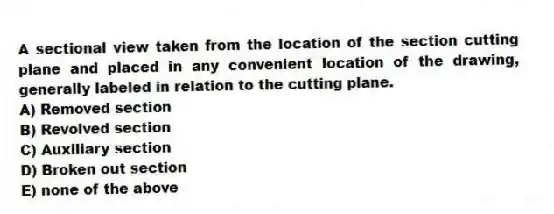

A sectional view taken from the location of the section cutting plane and placed in any convenient location of the drawing, generally labeled in relation to the cutting plane.
A) Removed section
B) Revolved section
C) Auxiliary section
D) Broken out section
E) none of the above

Question

Quizplus · Accepted Answer

A removed section is a sectional view taken from the location of the section cutting plane and placed in any convenient location of the drawing, generally labeled in relation to the cutting plane. This is the most appropriate choice for the given description. Revolved section is a sectional view obtained by rotating the object about an axis through space. Auxiliary section is a sectional view obtained by a secondary auxiliary cutting plane. A broken out section is a partial section view that is used when it is required to show only certain portions of a sectioned piece.
