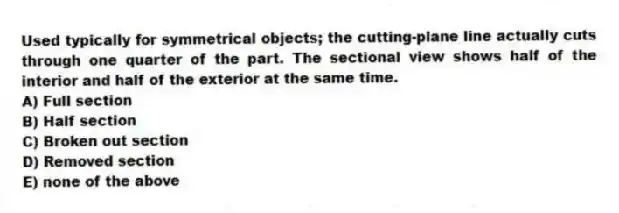

Used typically for symmetrical objects; the cutting-plane line actually cuts through one quarter of the part. The sectional view shows half of the interior and half of the exterior at the same time.
A) Full section
B) Half section
C) Broken out section
D) Removed section
E) none of the above

Question

Quizplus · Accepted Answer

A half section is used for symmetrical objects and shows half of the interior and half of the exterior at the same time. The cutting-plane line actually cuts through one quarter of the part.

Used Typically for Symmetrical Objects; the Cutting-Plane Line Actually Cuts
