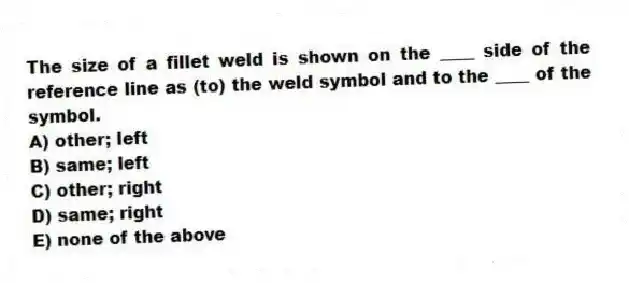

The size of a fillet weld is shown on the ____ side of the reference line as (to) the weld symbol and to the ____ of the symbol.
A) other; left
B) same; left
C) other; right
D) same; right
E) none of the above

Question

Quizplus · Accepted Answer

The size of a fillet weld is indicated on the same side of the reference line as the weld symbol and to the left of the symbol, according to standard welding symbol notation.
