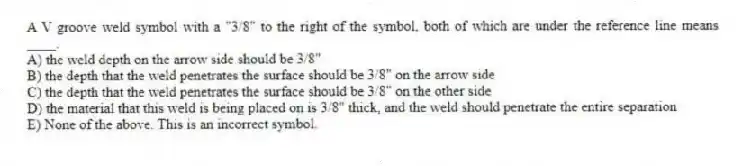

A V groove weld symbol with a "3/8" to the right of the symbol, both of which are under the reference line means ____.
A) the weld depth on the arrow side should be 3/8"
B) the depth that the weld penetrates the surface should be 3/8" on the arrow side
C) the depth that the weld penetrates the surface should be 3/8" on the other side
D) the material that this weld is being placed on is 3/8" thick, and the weld should penetrate the entire separation
E) None of the above. This is an incorrect symbol.

Question

Quizplus · Accepted Answer

The Answer of A V groove weld symbol with a "3/8" to the right of the symbol, both of which are under the reference line means ____.
A) the weld depth on the arrow side should be 3/8"
B) the depth that the weld penetrates the surface should be 3/8" on the arrow side
C) the depth that the weld penetrates the surface should be 3/8" on the other side
D) the material that this weld is being placed on is 3/8" thick, and the weld should penetrate the entire separation
E) None of the above. This is an incorrect symbol.
