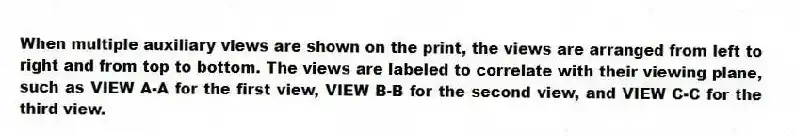

When multiple auxiliary views are shown on the print, the views are arranged from left to right and from top to bottom. The views are labeled to correlate with their viewing plane, such as VIEW A-A for the first view, VIEW B-B for the second view, and VIEW C-C for the third view.

Question

Quizplus · Accepted Answer

This statement is correct. When multiple auxiliary views are shown on the print, they are arranged from left to right and top to bottom, and labeled according to their viewing plane (e.g. VIEW A-A, VIEW B-B, VIEW C-C, etc.).
