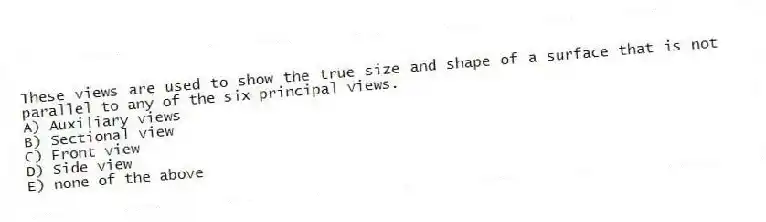

These views are used to show the true size and shape of a surface that is not parallel to any of the six principal views.
A) Auxiliary views
B) Sectional view
C) Front view
D) Side view
E) none of the above

Question

Quizplus · Accepted Answer

Auxiliary views are used to show the true size and shape of a surface that is not parallel to any of the six principal views. They are created by projecting the surface onto a plane that is perpendicular to the surface and then aligning it with one of the principal views. This creates a new view that shows the surface's true shape and size.
