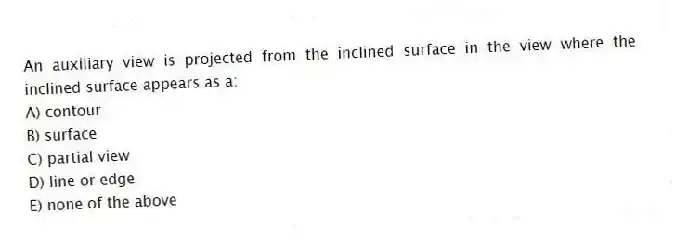

An auxiliary view is projected from the inclined surface in the view where the inclined surface appears as a:
A) contour
B) surface
C) partial view
D) line or edge
E) none of the above

Question

Quizplus · Accepted Answer

An auxiliary view is used to accurately represent the true shape and size of an inclined surface, which appears as a line or edge in the view from which the auxiliary view is projected. This is because the inclined surface is not parallel to any of the principal planes of projection, resulting in its true shape not being visible in the primary views.
