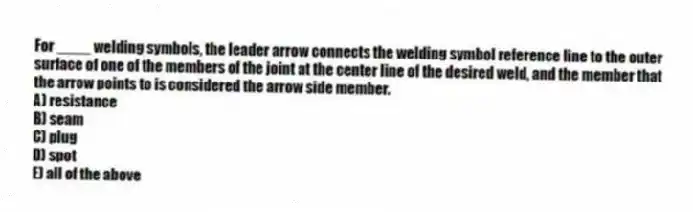

For ____ welding symbols, the leader arrow connects the welding symbol reference line to the outer surface of one of the members of the joint at the center line of the desired weld, and the member that the arrow points to is considered the arrow side member.
A) resistance
B) seam
C) plug
D) spot
E) all of the above

Question

Quizplus · Accepted Answer

All the mentioned welding symbols (resistance, seam, plug, and spot welding) use a leader arrow in the same manner to indicate where the weld should be applied, connecting the reference line to the outer surface at the center line of the desired weld.
