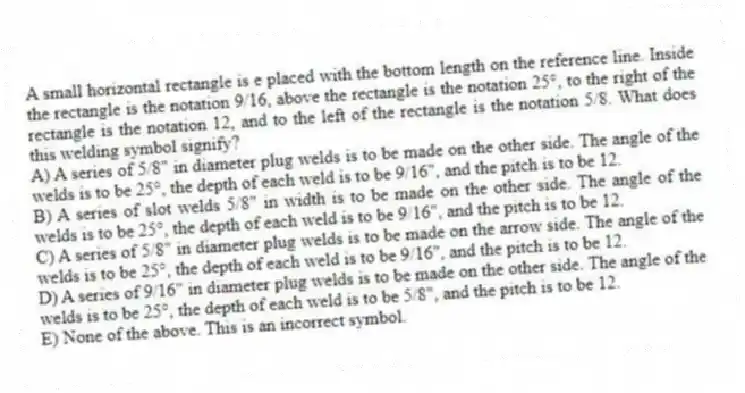

A small horizontal rectangle is e placed with the bottom length on the reference line. Inside the rectangle is the notation 9/16, above the rectangle is the notation 25°, to the right of the rectangle is the notation 12, and to the left of the rectangle is the notation 5/8. What does this welding symbol signify?
A) A series of 5/8" in diameter plug welds is to be made on the other side. The angle of the welds is to be 25°, the depth of each weld is to be 9/16", and the pitch is to be 12.
B) A series of slot welds 5/8" in width is to be made on the other side. The angle of the welds is to be 25°, the depth of each weld is to be 9/16", and the pitch is to be 12.
C) A series of 5/8" in diameter plug welds is to be made on the arrow side. The angle of the welds is to be 25°, the depth of each weld is to be 9/16", and the pitch is to be 12.
D) A series of 9/16" in diameter plug welds is to be made on the other side. The angle of the welds is to be 25°, the depth of each weld is to be 5/8", and the pitch is to be 12.
E) None of the above. This is an incorrect symbol.

Question

Quizplus · Accepted Answer

A series of 5/8" in diameter plug welds is to be made on the other side. The angle of the welds is to be 25°, the depth of each weld is to be 9/16", and the pitch is to be 12.
