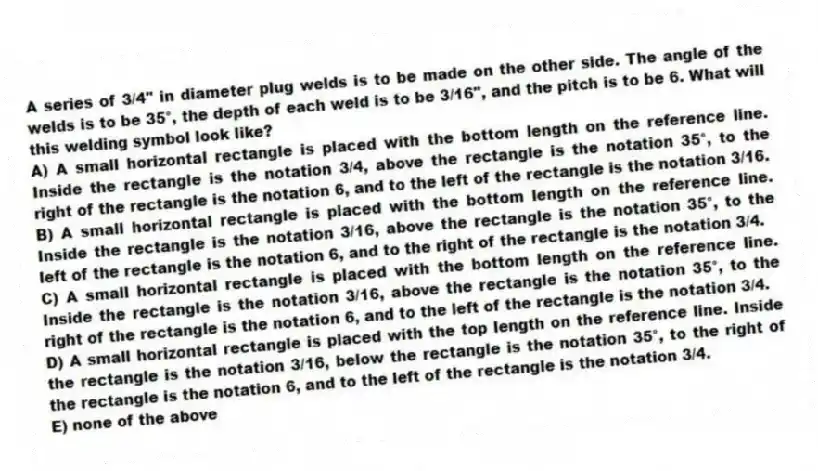

A series of 3/4" in diameter plug welds is to be made on the other side. The angle of the welds is to be 35°, the depth of each weld is to be 3/16", and the pitch is to be 6. What will this welding symbol look like?
A) A small horizontal rectangle is placed with the bottom length on the reference line. Inside the rectangle is the notation 3/4, above the rectangle is the notation 35°, to the right of the rectangle is the notation 6, and to the left of the rectangle is the notation 3/16.
B) A small horizontal rectangle is placed with the bottom length on the reference line. Inside the rectangle is the notation 3/16, above the rectangle is the notation 35°, to the left of the rectangle is the notation 6, and to the right of the rectangle is the notation 3/4.
C) A small horizontal rectangle is placed with the bottom length on the reference line. Inside the rectangle is the notation 3/16, above the rectangle is the notation 35°, to the right of the rectangle is the notation 6, and to the left of the rectangle is the notation 3/4.
D) A small horizontal rectangle is placed with the top length on the reference line. Inside the rectangle is the notation 3/16, below the rectangle is the notation 35°, to the right of the rectangle is the notation 6, and to the left of the rectangle is the notation 3/4.
E) none of the above

Question

Quizplus · Accepted Answer

The welding symbol for plug welds is a small horizontal rectangle placed with the bottom length on the reference line. Inside the rectangle, the diameter of the weld is noted. Above the rectangle, the angle of the weld is noted. To the right of the rectangle, the pitch (distance between centers of each weld) is noted. To the left of the rectangle, the depth of the weld is noted. Therefore, the correct welding symbol for the given information is a small rectangle with "3/4" inside, "35°" above it, "6" to the right of it, and "3/16" to the left of it. Thus, choice C is the correct answer.
